SPECIFICATIONS

Brand Name: ATELE

Certification: CE,FCC,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: Yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Origin: Mainland China

Rated Voltage: 220V

Type: Mini,Circuit breaker

is_customized: Yes

semi_Choice: yes

We can provide the API service for this product.

This service will add an extra fee.

If you need it, please feel free to contact us. We will give you our best attention at all times.

Notice:

This decive is not compatible with Home Assistant, please use the device in SMART LIFE APP/ TUYA APP.

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

The white model has no power meter function

The Black model with power meter function

Both models have NO overcurrent protection, can not set current ,voltage in APP.

Feature:
Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.
Schedule /Timing, countdown, cycle timing，Astronomical timing.
Voice control by Amazon Alexa echo dot / Google assistant

Parameter:
Working voltage:AC90-240V,50/60Hz
Wireless type:Wi-Fi 2.4GHz
Support system:Android\iOS

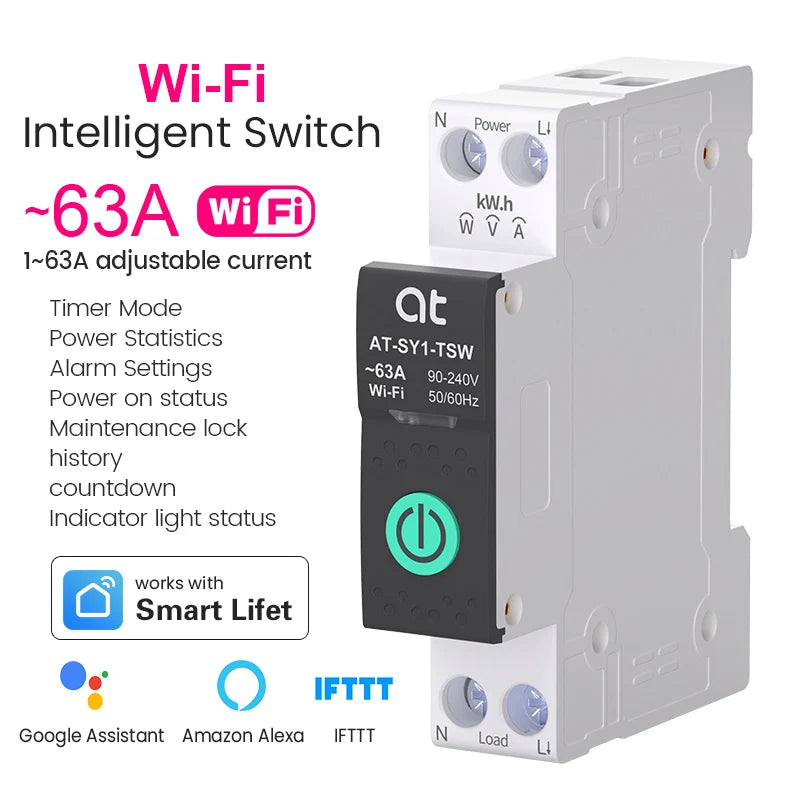

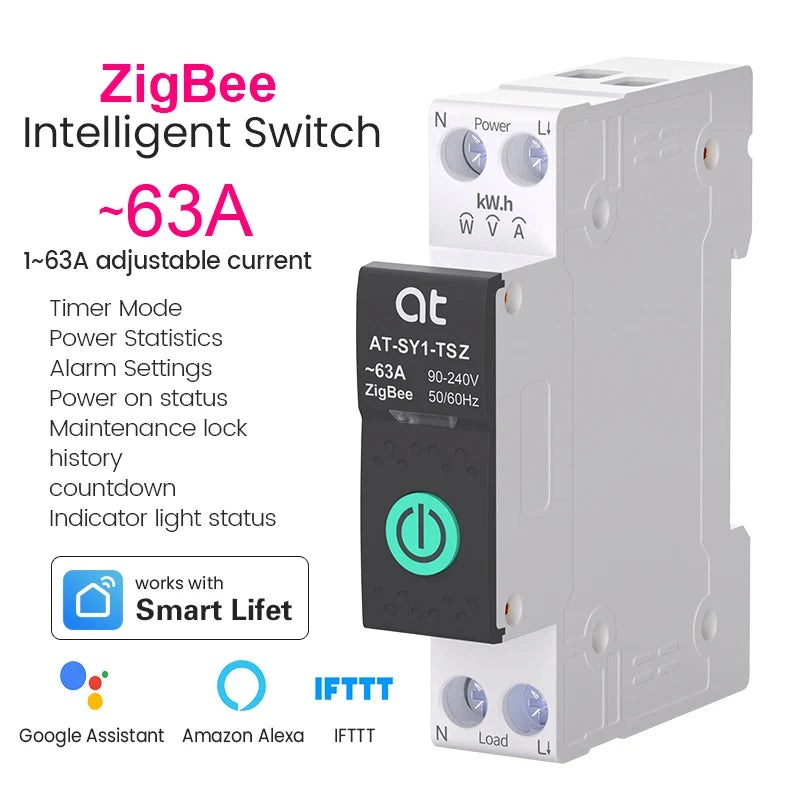

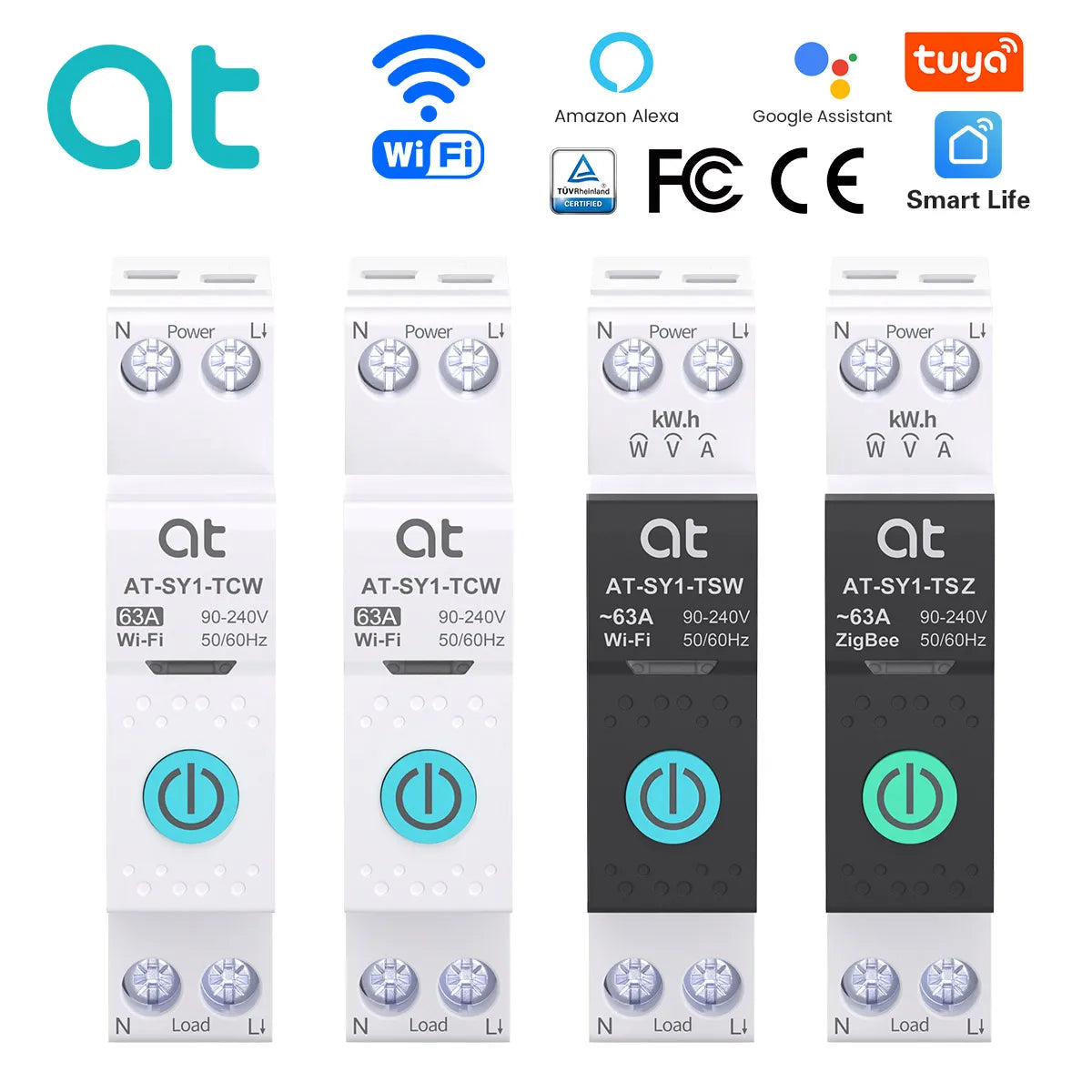

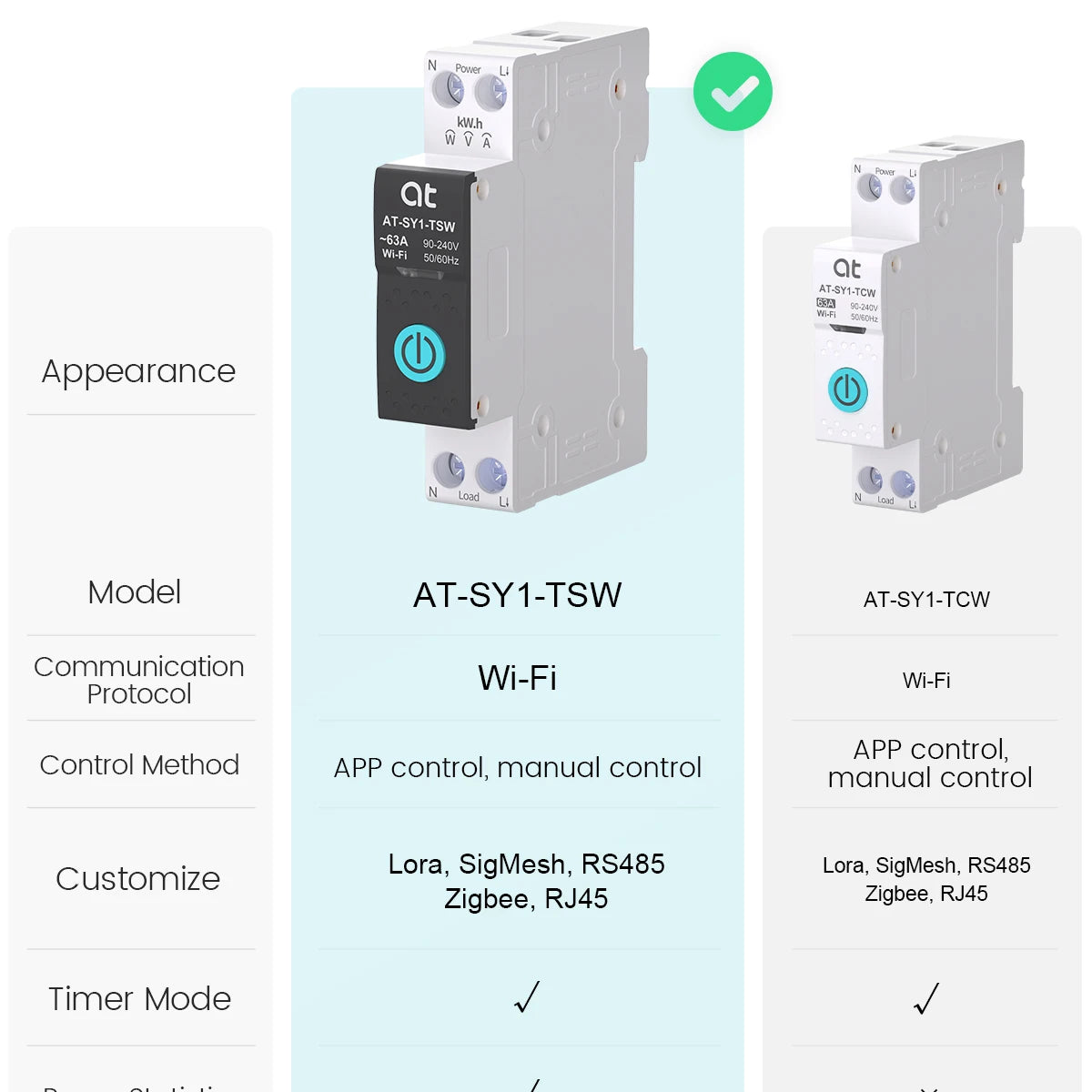

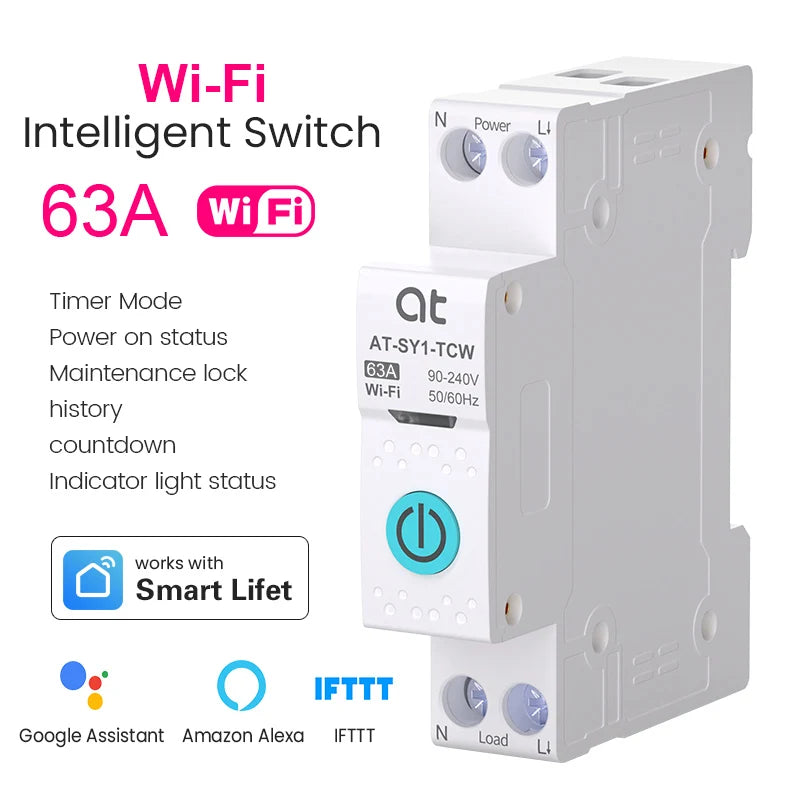

SY1-TCW Function	SY1-TSW Function	SY1-TSZ Function
Product Model	Product Model	Product Model
Countdown	Metering	Metering
Schedule	Countdown	Countdown
Sunrise / Sunset	Schedule	Schedule
Memory	Sunrise / Sunset	Sunrise / Sunset
Circulate	Memory	Memory
	Circulate	Circulate
		High Temperature
		High Power Alarm
		Over-voltage Alarm
		Under-voltage Alarm
